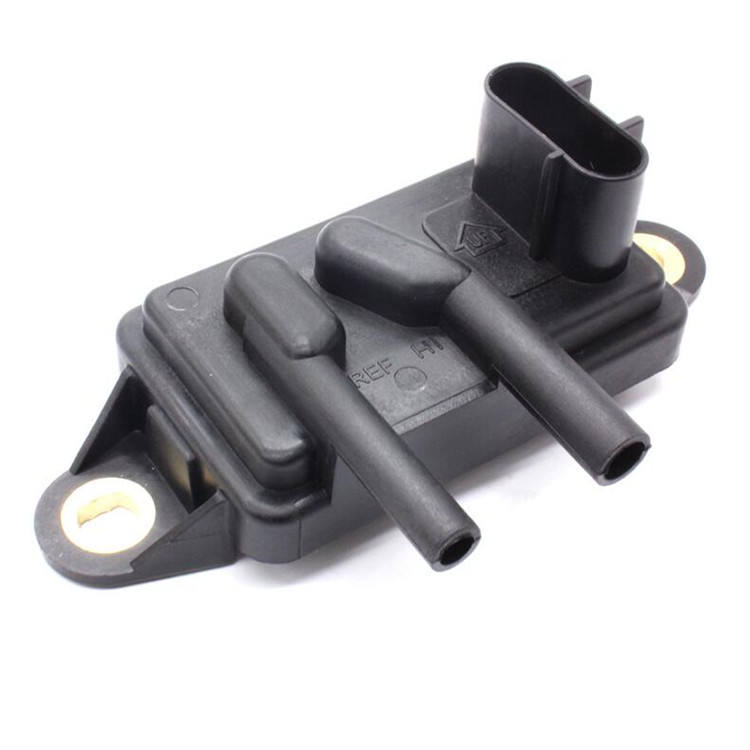

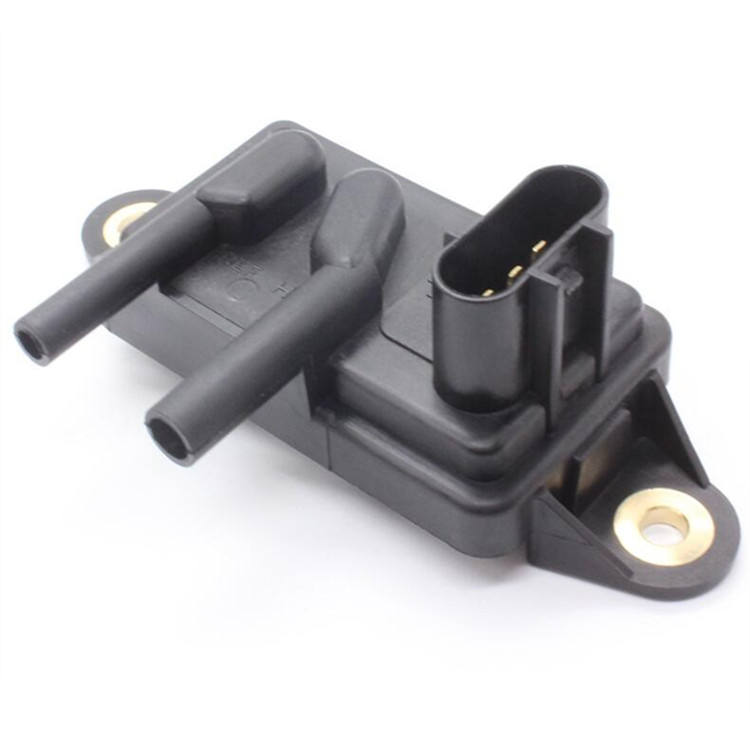

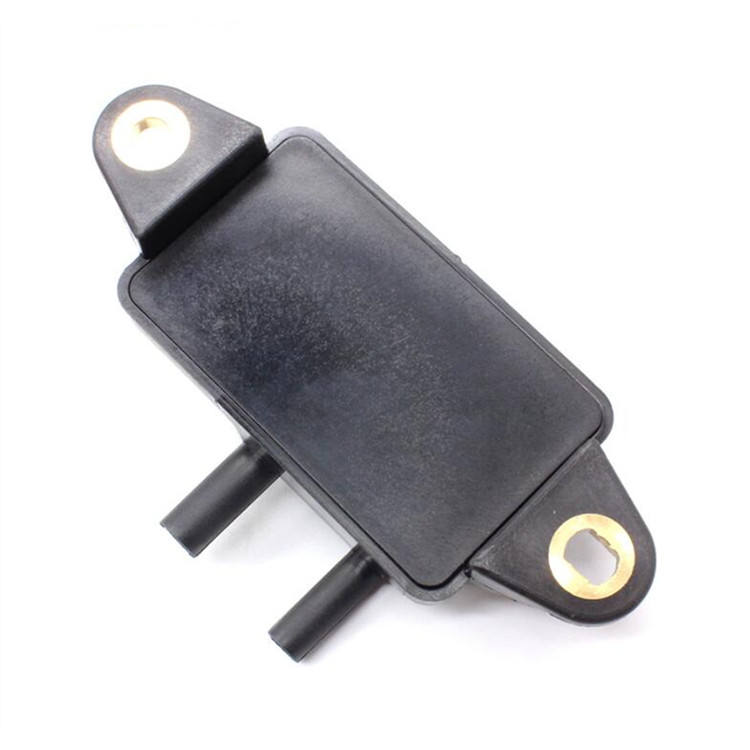

Introduction to EGR pressure feedback sensor DPFE15
YZHIDIANF EGR pressure feedback sensor DPFE15 is a precision electronic component designed for Ford Ranger, F-150, Escape, Focus, Expedition and other models, used to accurately monitor the pressure changes of the EGR system. As the core component of the EGR system, the sensor feeds back exhaust gas pressure data to the vehicle ECU (electronic control unit) in real time to ensure that the engine maintains optimal combustion efficiency and power output while reducing nitrogen oxide (NOx) emissions.
This product is manufactured using original OEM standards, compatible with the electrical interface and mechanical structure of Ford models, and strictly matches the original vehicle parameters (voltage range: 5V±0.25V, operating temperature: -40℃~130℃).
Function of EGR pressure feedback sensor DPFE15
1. High-precision pressure difference monitoring
The EGR pressure feedback sensor has a built-in dual-channel pressure-sensitive element, which can detect the exhaust gas pressure difference between the inlet and outlet of the EGR valve in real time (range: 0-30 kPa), with an error rate of less than ±1.5%, ensuring that the ECU accurately adjusts the EGR valve opening to avoid engine jitter or insufficient power due to pressure imbalance.
2. Dynamic signal transmission
Adopts CAN bus compatible PWM (pulse width modulation) signal output, with a response time of ≤5ms, seamlessly connected with the Ford ECU system, effectively preventing excessive emissions or fault codes (such as P0401/P0403) caused by signal delay.
3. Corrosion-resistant and anti-aging design
The shell is made of PA66+GF30 engineering plastic (UL94 V-0 flame retardant grade), and the internal circuit board is covered with a three-proof coating (moisture-proof, salt spray-proof, and mildew-proof), ensuring long-term stable operation in high temperature, high humidity, and oily environments, with a life cycle of ≥100,000 kilometers.
4. Self-diagnosis and fault protection
The integrated intelligent diagnosis module can detect abnormalities in the sensor’s internal circuit (such as open circuit, short circuit) in real time, and trigger the warning light (MIL) through the ECU to remind the user to avoid the risk of engine lock caused by sensor failure.
Advantages
Original factory compatibility
YZHIDIANF EGR pressure feedback sensor DPFE15 strictly follows Ford’s original technical specifications, and the plug terminal adopts gold plating technology (contact resistance ≤ 0.5Ω) to ensure 100% matching with the original vehicle wiring harness, and plug and play without modification.
Strict quality control system
Each EGR pressure feedback sensor has passed 72 hours of high and low temperature cycle test (-40℃ to 150℃), 5000 mechanical vibration tests (frequency 20-2000Hz) and IP67 waterproof verification, with a factory qualified rate of ≥99.8%, and the quality is comparable to first-line brands.
Installation convenience
The EGR pressure feedback sensor adopts a compact design (size: 85mm×45mm×30mm), equipped with pre-installed anti-loosening buckles and positioning pins, and supports single-person replacement within 10 minutes (10mm socket wrench required), greatly reducing maintenance time costs.
Applicable models
Ford full range adaptation list:
Ford Ranger (2011-2023, 2.2L/3.2L diesel/2.3L gasoline engine)
Ford F-150 (2015-2022, 3.5L EcoBoost/5.0L V8)
Ford Escape (2017-2023, 1.5L/2.0L/2.5L hybrid version)
Ford Focus (2018-2023, 1.0L EcoBoost/2.0L Duratec)
Ford Expedition (2018-2023, 3.5L twin-turbocharged model)
FAQ
Q1: How do I determine if my vehicle needs to replace the EGR pressure feedback sensor?
A: If the following symptoms occur, it is recommended to check or replace immediately:
- The engine fault light is always on (fault code P0401/P0403/P0405)
- Unstable idle speed, weak acceleration or abnormally increased fuel consumption
- A pungent odor in the exhaust gas during cold start (NOx emissions exceed the standard)
Q2: Does the EGR feedback sensor need to be reprogrammed after installation?
A: No programming is required. The EGR pressure feedback sensor DPFE15 is designed for plug-and-play, but it is recommended to use the OBD-II tool to clear the historical fault code to ensure system reset.
Q3: How to deal with the oxidation of the sensor harness interface?
A: Spray the plug with an electronic contact cleaner (such as CRC 05103) and use a soft brush to remove rust. If the terminal is severely damaged, the original vehicle harness connector needs to be replaced.
Q4: How to verify the authenticity of the product?
A: Each product is affixed with an anti-counterfeiting QR code on the outer packaging (scratch the coating and scan the code to check), and a unique serial number (engraved on the sensor housing) is provided, which supports official website verification.
Q5: What are the steps in your company’s quality inspection process?
A: The production process covers:
- Full inspection of incoming materials (raw material batch traceability)
- Online AOI optical inspection (solder point yield ≥ 99.9%)
- 72-hour aging test (simulating 5-year working conditions)
- Final inspection (functional test + appearance inspection)
